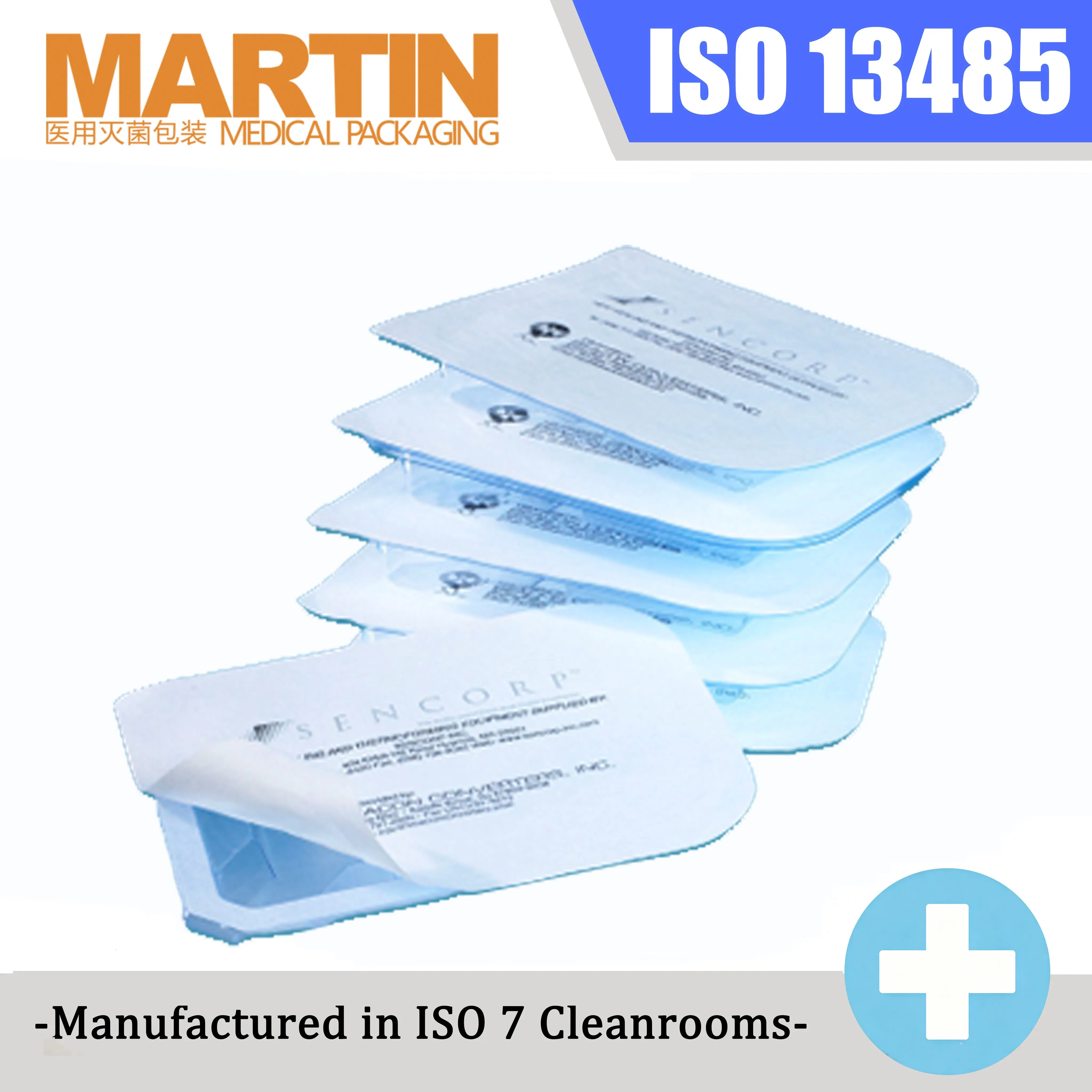

2FS Water‑based Coated Dupont Tyvek® Lidding Material
ISO 11607, EN 868, GB/T 19633
Additional applicable standards:
[1] GB/T 19633‑2005 Packaging for terminally sterilized medical devices
[2] GB/T 5402‑2003 Paper and board — Determination of air permeance (medium range) — Gurley method
[3] ISO/DIS 22611 Clothing for protection against infectious agents — Test method for resistance to penetration by microbial‑containing aerosols
[4] ASTM F 1980 Standard Guide for Accelerated Aging of Sterile Medical Device Packages
Composition of Medical Tyvek® Lidding Material: DuPont medical‑grade Tyvek paper plus medical‑grade coating adhesive.
Available Tyvek raw material grades: 2FS, 1059B, 1073B. DuPont Tyvek® lidding material is ideal for thermoformed trays. It guarantees sterility and integrity of high‑end, heavy‑duty and/or fragile medical devices before opening. Tyvek features eight‑times higher strength than medical‑grade paper of equal or heavier basis weight. It delivers excellent puncture resistance, hard to be pierced by sharp or irregular edges of surgical instruments.
Compatible sterilization methods: Ethylene Oxide (EtO) and Gamma radiation sterilization. Contact us for various blister tray materials matched with lidding films.
High strength, superior microbial barrier property and long service life with excellent resistance to microbial penetration. Clean paper‑free peel after sterilization. Sealing strength: 3.5‑7 N/15 mm. Good tensile strength and air permeability (35‑80 sec).
We supply various shapes of medical‑grade hot‑melt coated Tyvek® lidding materials, including Tyvek® 2FS, Tyvek® 1059B and Tyvek® 1073B.
Feature Description
● Compatible with Ethylene Oxide (EtO) and radiation sterilization;● Custom‑cut shapes available per customer container design. Automatic die‑cutting equipment ensures precise dimension and hygiene;● Excellent physical performance with good tear resistance, puncture resistance and sealing property;● Non‑toxic eco‑friendly hot‑melt adhesive with consistent dot‑coating delivers good air permeability;● Superior microbial barrier to maintain sterility of contents before use;● Special heat‑seal coating provides outstanding hot‑tack strength, consistent peel‑able seal strength and controlled adhesive transfer;● Heat‑sealable with multiple thermoplastics: PVC, polystyrene, high‑impact PS, PETG, PE and selected grades of polypropylene.
Typical Application
Widely used, especially for Class II & Class III medical devices.
Sterilization Method
Compatible with EtO and radiation sterilization.
Customization
Up to 4‑color printing available, sterilization indicator printing is supported.
